Item NO.:
LC-FB001Input voltage :
AC 85~265VPower :
20-150WLuminous flux :
2000-15000lmLED light source :
BridgeluxDriver :
-PF :
0.98CRI :
75Luminous efficiency :
100lm/wColor temperature :
2700-6000KWorking temperature :
-30-55℃IP rating :
IP65Warranty :
5 yearOrder(MOQ):
1Product Origin:
ChinaColor:
yellowShipping Port:
Zhongshan / ShenzhenLead Time：
1-30 days

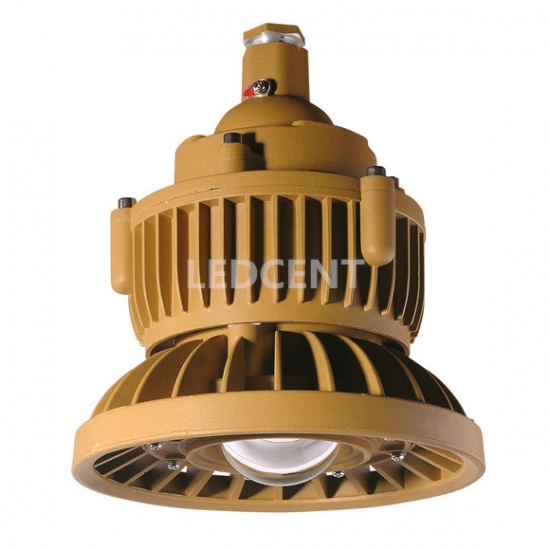

The lamp body is made of good quality aluminum alloy that is stamped forming by machine, having a stable and reliable performance.
IK rating can reach Exd II CT6
Antiseptic Rank: WF2
IP rating: IP65
Applied to the area 1 and 2 of explosion gas environment.
Applied to IIA、IIB、IIC explosion gas space; Applied to T1 to T6 temperature degree;
The size of input hole is G3/4”, suiting for φ10~14mm cable;
Using USA Bridgelux led chip, the luminous efficiency of whole lamp is more than 100lm/w
Using single chip protection technology, don’t make a difference in the other led chip when one chip is broken.
An excellent product always working with a high-quality drive;
We provide products with 5-year warranty assurance, the stable working life of more than 8 years;
Installation
Installation modes: Ceiling mounted type, Wall-mounted type, Conduit suspension type, Vertical rod mounted type, Bracket mounted type
