100W Dusk to Dawn LED Street Light with Bridgelux Chip and Meanwell Driver

100W dusk to dawn LED street light, with photocell, light up/turn off automatically.

UL listed photocell, Meanwell driver, Bridgelux 45mil Chip, with 3 year warranty. LEDcent offer the best LED street lighting

Item NO.:
LC-L001PH-100W
Input voltage :
AC85-265 50/60HZ
Power :
100W
Luminous flux :
10,000lm
LED light source :
Bridgelux 45mil
Driver :
Meanwell or Moso
PF :
0.95
CRI :
75
Luminous efficiency :
100lm/w
Color temperature :
3000-6000k
Working temperature :
-30-55℃
IP rating :
67
Warranty :
3 year
Order(MOQ):
1
Payment:
TT, LC
Product Origin:
China
Color:
black/white/blue
Shipping Port:
Shenzhen
Lead Time：
10-20 days

Inquiry now Download

Product Detail

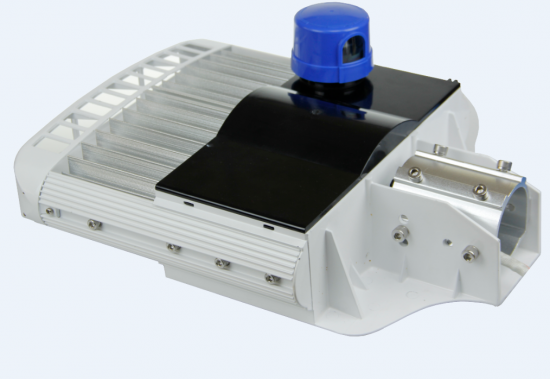

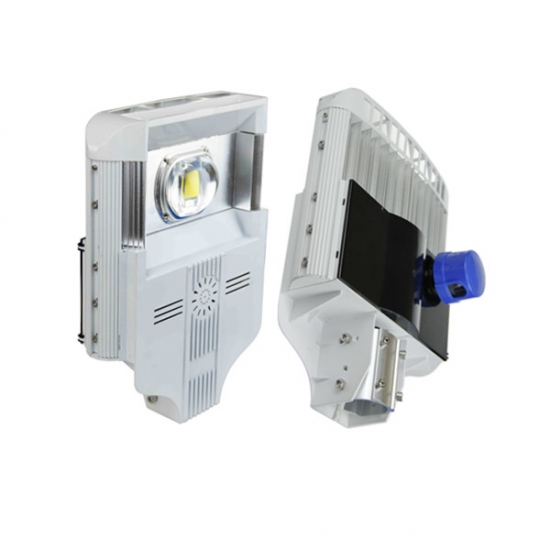

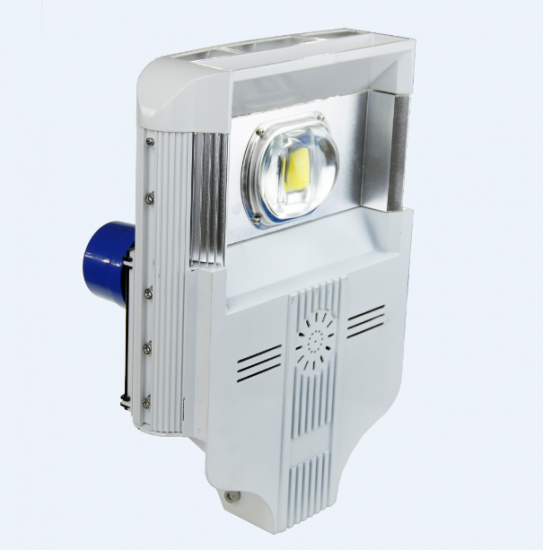

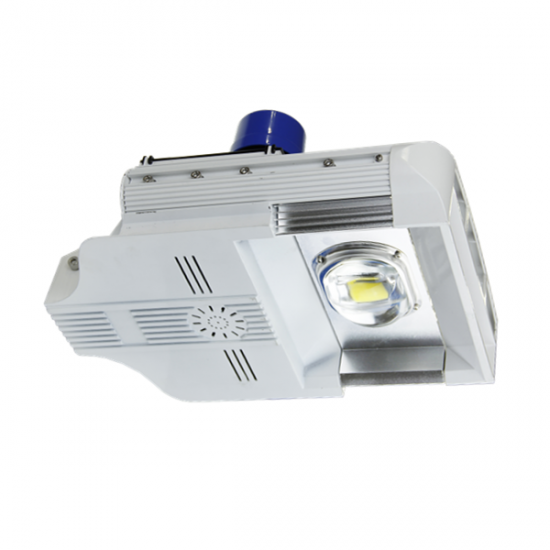

LEDcent 100W Photocell LED Street Light

Quick details:

Input voltage: AC85-265V, 50/60HZ

Power: 100W

LED chips: COB bridgelux 45mil 50W*2

LED driver: Meanwell HLG series with UL, CE, VDE, CQC.,etc certifications

UL listed Photocell controller switch.

Total Luminous flux: >10,000lm

CRI: >0.75

PF: >0.95

THD:<15%

Color Temperature: 5000-5500K

Working temperature: -30-55℃

IP rating: IP67

Lifespan: >50,000hours

Warranty: 3 years

Certifications: CE, RoHs, IP67.

Packaging & Delivery

Packing details:

One pcs packed in one 5-ply carton box, with foam and poly protection.

Delivery details:

Production time about 15-20days after payment/deposit received.

Product features:

1. Module design, one module is 50W, if LED chips for one module fail, we can replace it within 5 minutes.

Just unfasten the screw on both side, take the mal-function module and replace it with the right one.

2. Excellent quality, we adopt bridgelux 45mil LED chips, Meanwell HLG series driver, VDE/CE/UL listed cable, 304 stainless steel for excellent quality.

3. Excellent heat dissipation, we adopt 6030T high purity aluminum alloy for heat sink, the LED street light surface temperature is under 60℃, to enlong lamp lifespan.

4. More safe, a security steel rope is connected between lamp pole and LED street light, in case of car crash or violent impact, the lamp will not fall off.

5. Easy maintenance, the LED driver cover can be opened without any tool, can replace the driver very easily.

Application:

1. Road or street lighting

2. Car parking lot lighting

Optical parameters:

The batwing light distribution offers wide luminance without glare.

Pyrex glass shade allow 97% light transmission without loose, while PC only 87% allowance, 13% light will be wasted.

Pyrex glass endure -50-500℃ temperature, can working in extreme climate.

Pictures showing

Optical lens-pyrex glass, with beam angle 135*60 degree

VDE water proof cable

Meanwell HLG series driver with 7 year warranty.

Finished LED street light is IP67 rating, can be put into water.

The spigot angle is adjustable for different lighting angle, larger angle better light distribution.

The case of LC-L001 top rated LED street light

This top-rated LED street light lifespan is over 50000 hours, if light up 8 hours per day, it will light up for over 17 years!

If equipped with smart driver, more energy will be saved, for example, for the first 3 hours full power running, later 3 hours half power running, last 2 hours 30% power running.

About LEDcent

Zhongshan ledcent optoelectronics technology co.,ltd.Headquartered in industrial district of henglan,Zhongshan city,Guangdong provice,China. Ledcent covers an area of 30,000 square meters with over 200 employees. Our annual sales value has reached 51 million. And also listed as key procurement enterprises by government. With the development, our products have sold to Europe, America, southeast Asia, Middle East, more than 20 countries and regions.

Ledcent is a hight tech enterprise that engages in the R&D,designing, installation and after- sales servises for all kinds of LED lighting products.Because of the advanced management and powerful R&D.team,we have got some advantages in manufacturing LED Display andLED Street Light, Solar LED Street Light, LED Tunnel Light, LED Explosion-proof Light .

Also successfully acquired ISO9001-2008 quality verification and passed CQC,CE,FCC,RoHS which ensure the quality for each of our products. Qality and Brand is the most important part of Ledcent.Through the Science&Technology innovation and after-sales service. We get hight praise from many customers in practical.

We sincerely hope that we can make the cooperation with you are. To lead the global mission of Low carbon,Save Energy,Green and Healthy.
