All in One Solar Street Light 30W with Motion Sensor

All-in-one solar street light: no need power cable, don't consume city power,15/20/30/40W availalbe, equipped with motion or radar sensor, for more energy saving use. LEDcent provide the best all in one solar street light in China

  • Item NO.:

    LC-YTL001-20W
  • Power :

    20W
  • Luminous flux :

    2,000lm
  • LED light source :

    Philips 3030
  • Driver :

    No driver
  • PF :

    0.95
  • CRI :

    75
  • Luminous efficiency :

    100lm/w
  • Color temperature :

    3000-6000k
  • Working temperature :

    -30-55℃
  • IP rating :

    65
  • Warranty :

    2 year
  • Order(MOQ):

    1
  • Payment:

    TT, LC
  • Product Origin:

    China
  • Color:

    Grey
  • Shipping Port:

    Shenzhen
  • Lead Time:

    10-20 days

30W All in One Solar Street Lights with Montion Sensor-15W, 20W, 30W optional


1) Energy-saving: consume less energy compared with traditional lights.

2) Environmental-friendly : NO UV,IR and other radiation.

3) Long lifespan——more than 50,000 hours .

4) Low light loss and no flicker.

5) Application: Road traffic, auxiliary, residential road, courtyard, the mining area .



Product Name:
All-in-one solar LED street light; all-in-one LED garden light
Wattage:
15W/20W30W optional
LED chip:
Bridgelux/Epistar/Philips/Cree chips optional
LED Controller
MPPT
Solar panel
Monocrystalline Silicon 50w
Feature:
Eco-Friendly, engergy-saving, Other
Voltage:
AC85-265V
Color Temp.:
6000-6500K
Warranty:
3 years
Lamp color:
Black/white
Fixture Dimension :
1073*420*385mm
Fixture weight :
18kgs


Features

A. All in one design, more convenient for installation.

B. Equiped with motion or radar sensor to save more energy, for the limitness for the solar panel.

C.With timer dimming function

D. Intelligent infrared detecting system.

E. Adopt lithium battery.

F. short-circuit protection.

G. Over heat/temperature protection

H. Over charge/over discharge protection, to enlong battery lifespan.

I. High luminous effience:>100lm/w.

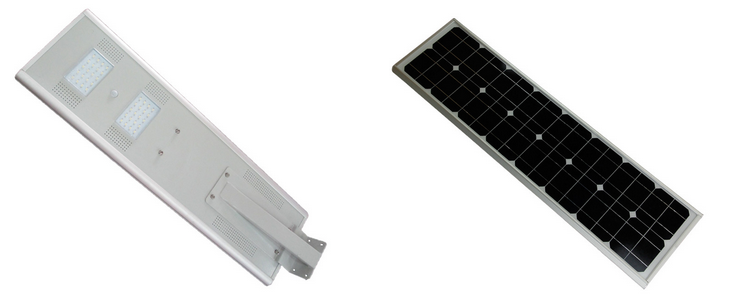

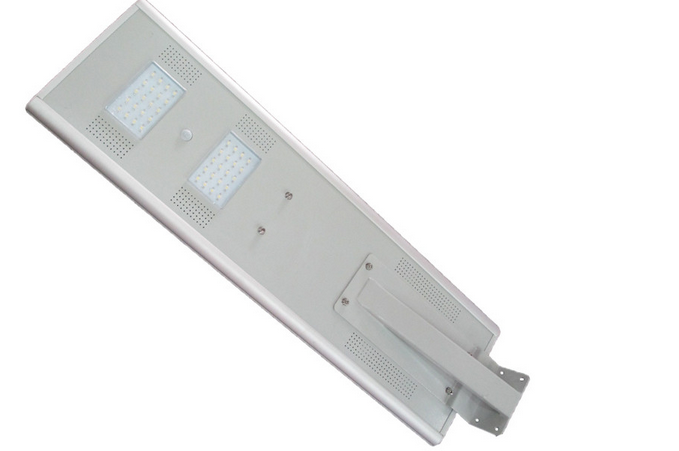

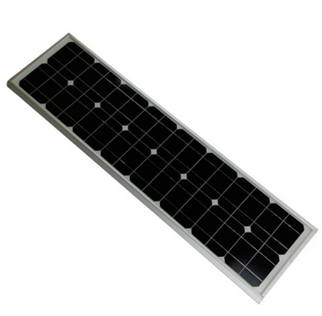

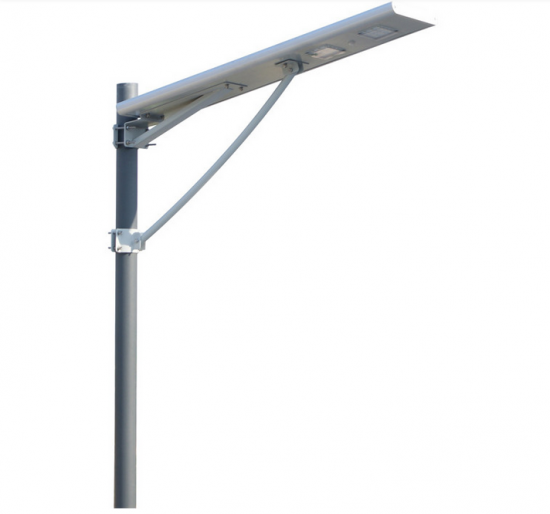

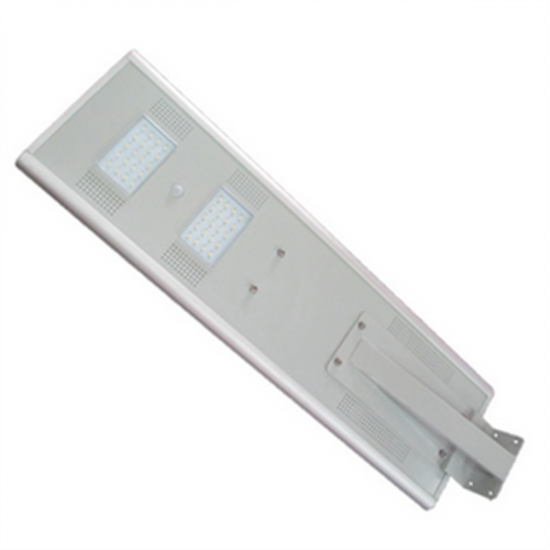

Product pictures

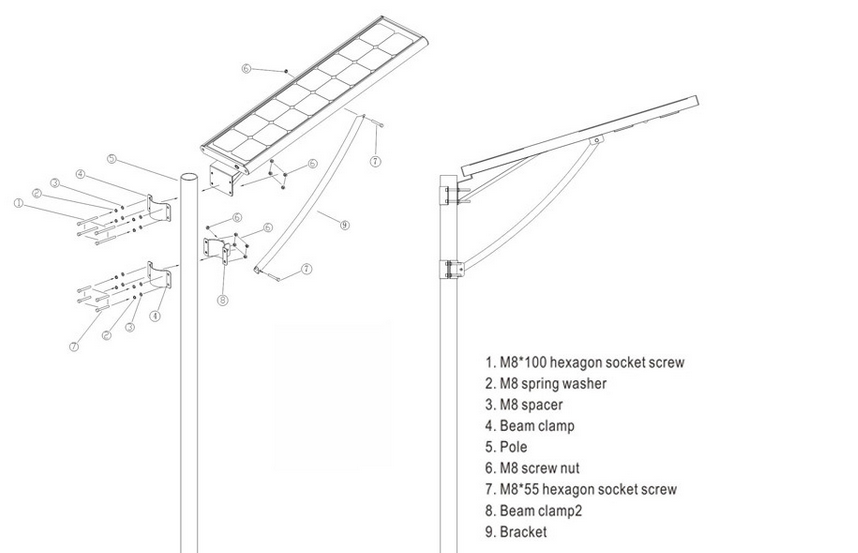

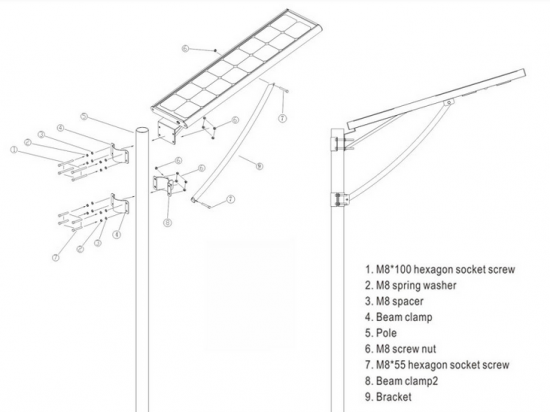

The installation guide for all-in-one solar street light

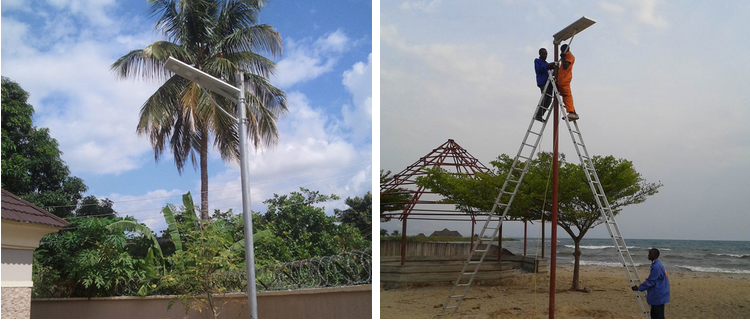

One of our project installed in south africa
